| Capacity | SC6000 Single | SC6000 Twin |
|---|---|---|
| Platform length, min-max | 4.1 – 16.9 m | 12.6 – 44.6 m |
| Platform width | 1.6 m | 1.6 m |
| Max. lifting capacity / platform length | 3300 kg / 4.1 m | 5600 kg / 13.4 m |
| 2900 kg / 7.3 m | 4600 kg / 23.8 m | |
| 2700 kg / 10.5 m | 4100 kg / 27.0 m | |
| 2100 kg / 13.7 m | 2200 kg / 36,6 m | |
| 1400 kg / 16.9 m | 1200 kg / 44.6 m | |
| Max. mast height, anchored mast | 100 m | 100 m |
| Max. mast height, freestanding mast | 25m | 25 m |
| Max. anchor spacing | 18 m | 18 m |
| Vertical travel speed | 11.3 m / min | 11.3 m / min |
| Chassis drive unit speed | 13 m / min | |
| Platform height at the lowest position | 1.55 m | 1.55 m |

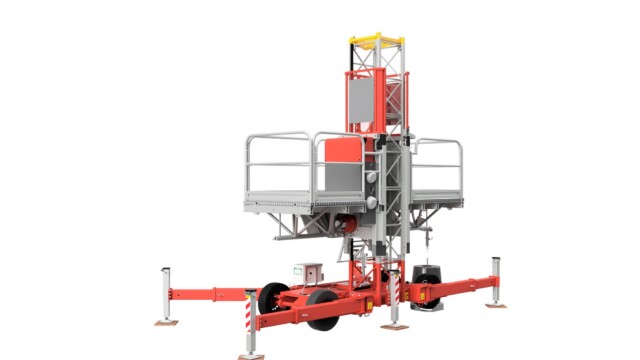

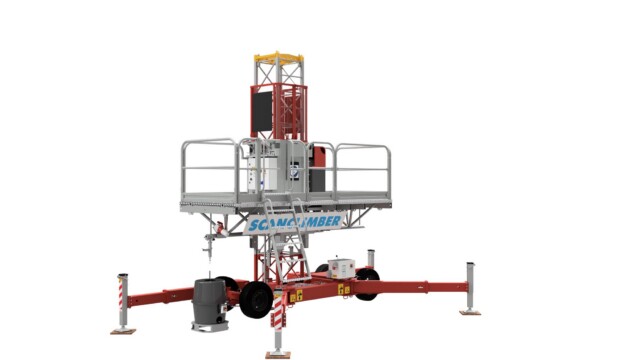

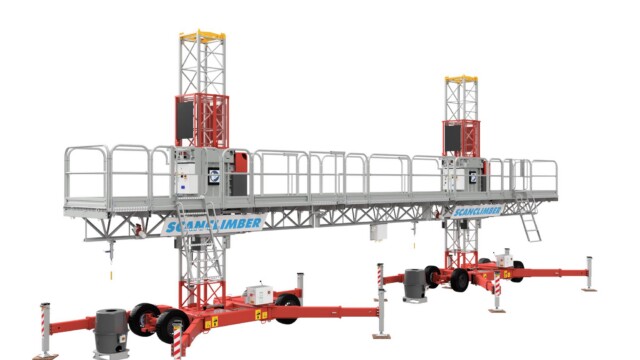

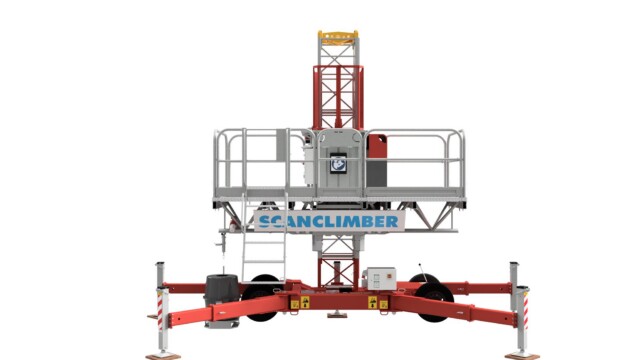

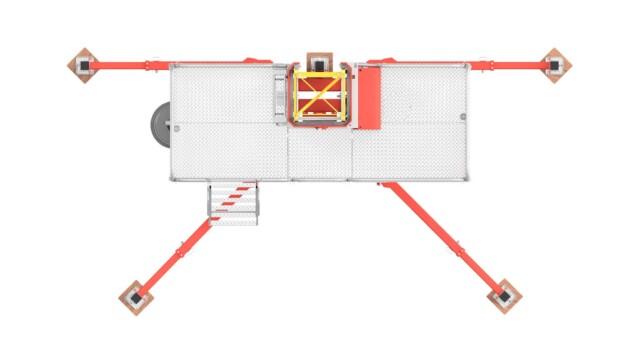

Taurus SC6000
The Taurus SC6000, a robust combination of a lifting machine and working platform, meticulously engineered to meet the demands of heavy-duty facade work. As Scanclimber’s flagship model for high-capacity projects, the SC6000 excels in new constructions and restorations alike, offering an unmatched solution for projects requiring extensive platform size and strength.
Product images are provided to enhance understanding and may differ from actual product appearances; please contact our team or refer to the instruction manuals for detailed information.
Key Features
Lifting Speed
11.3 m/min
Loading Capacity
Designed to handle the heaviest of loads up to 6000 kgs (twin unit). Up to 3300 kg with single unit configurations Up to 6000 kg with a twin unit configurations
Installation Height
Up to 150 meters and higher
Platform Length
Up to 16.9 meters with single unit configurations Up to 44.6 meters with a twin unit configurations
Max. Free Standing Height
Up to 19 m
Menu
Customization Options
- Snake Platform: Ideal for navigating complex geometries.
- Mast Climbing Top Crane (MCTC): For lifting loads to platform at height.
- Bricklayers Extensions: Custom solutions for masonry work
- Lifting Table LT500: Smooth elevation of materials to platform.
- Assembly Arm: Simplify the assembly of large elements and lifting loads to platform.
- 90 Degree Mast Adapter: Enables the mast to rotate by 90 degrees, optimizing platform orientation.
- Assembly Arms: Facilitates the assembly of structures with improved precision and stability.
- Telescopic Extensions: : Offers variable length adjustments for reaching distant points with ease.
Technical Information
SC 6000 Capacity
SC 6000 Weights and dimensions
| Weights and Dimensions | SC6000 Single | SC6000 Twin |
|---|---|---|
| Lowest transport height | 2.4 m | 2.4 m |
| Lowest platform level | 1.55 m | 1.55 m |
|
Platform section
|
|
|
| Platform extensions |
|
|
|
Mast section
|
|
|
|
Lifting frame (fully equipped)
|
|
|
|
Chassis with outriggers
|
|
|
SC 6000 Electrical Installation
| Electrical data | SC6000 Single | SC6000 Twin |
|---|---|---|
| Lifting motors | 2 x 5.5 kW | 4 x 5.5 kW |
| Supply voltage | 2×400 V / 50 Hz | 4×400 V / 50 Hz |
| Power supply fuses | 3 x 32 A | 3 x 32 A + 3 x 32 A |
| Needed power supply | 48 kVA | 48 kVA |
| Max. starting current | 125 A | 125 A |
| Control voltage | 48 VAC | 48 VAC |
| Socket for hand tools | 2 x 230 V / 16 A | 4 x 230 V / 16 A |
SC 6000 Safety Equipment
| Safety equipment | SC6000 Single | SC6000 Twin |
|---|---|---|
| Mechanical safety brake | Yes | Yes |
| Emergency lowering system | Yes | Yes |
| Top and bottom limit switches | Yes | Yes |
| Top and bottom safety limit switches | Yes | Yes |
| Safety railing (h=1.10 m) and kickboard on the platform | Yes | Yes |
| Springloadeddiskbraketorque100Nm | Yes | Yes |
| Inductive mast detector | Yes | Yes |
| Residual current device | Yes | Yes |
| Automatic platform level control system on twin mast version | Yes |
