| Capacity | SC20M Twin Mast |
SC20T Twin Mast |
|
|---|---|---|---|
| Usage | Material Hoist | Transport Platform | |
| Payload (kg) | 2000 kg | 2000 kg incl. max 12 persons |
|
| Speed | 24 m/min | 12 m/min | |
| Max. lifting height, with anchored mast (m) | up to 100 m | ||
| First anchor (m) | 6,5 m | ||
| Distance between anchors (m) | 10 m | ||
| Free mast after topmost anchoring (m) | 4 m | ||
|
Maximum wind speed (m/s)
|
|
||
| Operation temperature (C˚) | -25..+40 | ||
| Noise level [dB(A)] | < 78 | ||
SC20 Transport Platform (M/T)
High-Capacity Transport Platform for Material and Personnel Transportation
The SC20 Transport Platform is a high-capacity material and personnel hoist designed to provide safe, efficient, and reliable vertical transportation on construction and industrial sites. Combining the functions of a transport platform, and material hoist, it enables the movement of workers, construction materials, and equipment using a single lifting solution.
Optimized for construction projects, the Scanclimber’s SC20 transport platform improves site logistics by reducing manual handling and simplifying access to elevated work areas. Serving as a practical scaffolding alternative, it enhances productivity while supporting safe and controlled transportation of personnel and materials throughout the project lifecycle.
Its robust design, high lifting capacity, and efficient operation make the SC20 transport platform an effective material & personnel hoist for commercial, residential, industrial, and infrastructure construction projects.

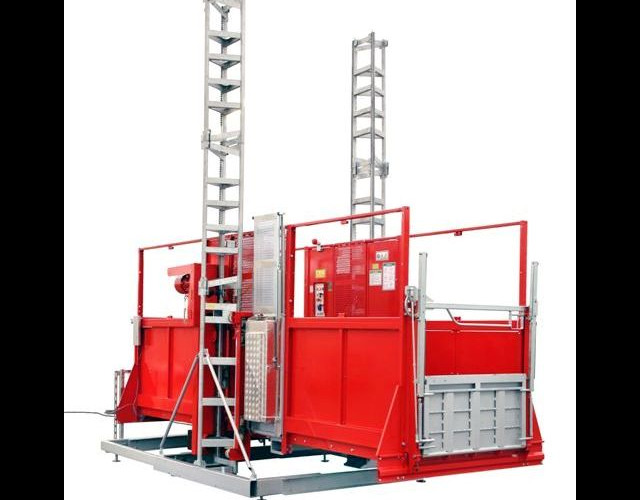

transport platform sc20

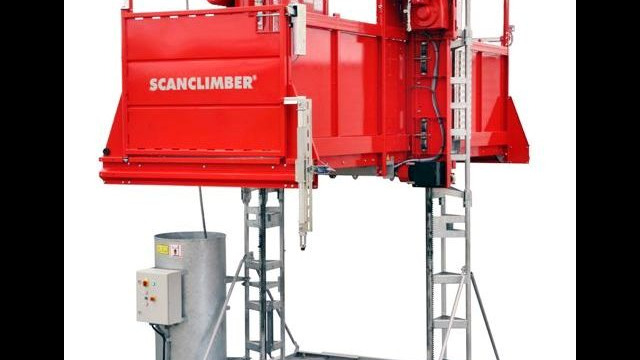

transport platform sc20 1
transport platform sc20 platform
transport platform sc20 side view

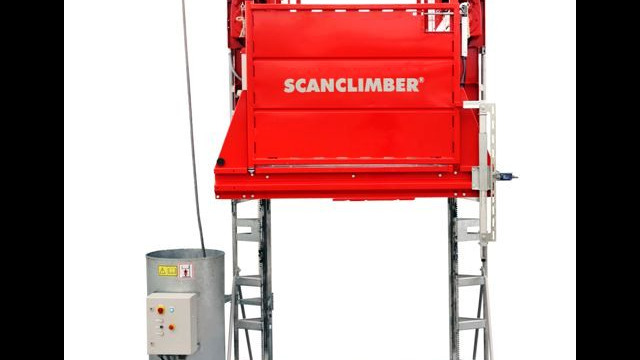

transport platform sc20 air
Product images are provided to enhance understanding and may differ from actual product appearances; please contact our team or refer to the instruction manuals for detailed information.
Key Features SC20
Lifting Speed
- Material Hoist: 24 m/min
- Transport Platform: 12 m/min
Loading Capacity
- Up to 850 kg or 7 persons
Platform Configurations
- Material Hoist: 1380 × 1700 mm
- Transport Platform: 1625 × 1434 mm
Maximum Lifting Height
- Up to 100 metres with a tied mast configuration.
- Higher lifting heights are available upon request to meet specific project requirements.
Why Choose the SC20 Transport Platform?
The Scanclimber’s SC20 transport platform combines the functionality of a transport platform, and material hoist, into one high-capacity vertical access solution. Designed to transport both workers and materials safely, it improves construction site productivity while serving as a reliable scaffolding alternative. With a payload up to 2,000 kg, lifting heights of up to 100 metres, and optimized lifting speeds, the SC20 provides an efficient and dependable solution for demanding construction projects.
Durable Galvanized Construction
Hot-dip galvanized steel components provide
- Excellent corrosion resistance.
- Long service life.
- Reduced maintenance.
Foundation-Free Installation
- Designed for easy installation and dismantling.
- Does not require a special foundation preparation.
- Reduces site preparation time and installation costs.
Technical Information SC20
SC 20 M/T/P Capacity
SC 20 M/T/P Weights and Dimensions
 |
 |
 |
 |
 |
 |
||||
| Weights and dimensions | SC20 M/T | SC20 M/T | SC20 M/T | SC20 M/T | SC20 M/T | SC20 P | |||
|---|---|---|---|---|---|---|---|---|---|
|
Dimensions of transport platform (internal)
|
1700 1380 2100 496 |
3400 1380 2100 730 |
3400 1380 2100 778 |
1700 2760 2100 725 |
1700 2760 2100 725 |
1700 1380 2100 496 |
|||
|
Dimensions of the gate/ramp opening
|
1386/1345 2100 |
1386/1345 2100 |
1386/1345 2100 |
2672/2720 2100 |
2672/2720 2100 |
1386 2100 |
|||
|
Dimensions of the mast section
|
410×361 1489(1526) M16x140-8.8 6 |
410×361 1489(1526) M16x140-8.8 6 |
410×361 1489(1526) M16x140-8.8 6 |
410×361 1489(1526) M16x140-8.8 6 |
410×361 | 410×361 1489(1526) M16x140-8.8 6 |
410×361 | 410×361 1489(1526) M16x140-8.8 6 |
|
| Weight of the mast section with one gear rack (kg) | 41 | 41 | 41 | 41 | 41 | 41 | |||
|
Installation area, required place
|
410×361 | 2310 3170 2315 |
410×361 | 3815 3170 2315 |
410×361 |
3860 3170 2315 |
2310 4570 2315 |
2310 4570 2315 |
|
| Dimensions of the top drive unit weight (kg) | 2×420 | 2×420 | 2×420 | 2×420 | 2×420 | 2×420 |
SC 20 M/T/P Electrical Equipment
| Electrical data / cage | SC20 M/T | SC20 P |
|---|---|---|
| Power – 2 lifting motors (kW) 2 speeds – (m/s) |
3 /6,1 0,2/0,4 |
3/6,1 0,6 |
| Supply voltage/frequency (V/Hz) | 400/50 | 400/50 |
| Control voltage/frequency (V/Hz) | 48/50 | 48/50 |
| Max. starting current (A) | 78 | 78 |
| Power consumption (kW) | 13 | 20 |
| Size and type of the main fuse (A) | 32 / slow | 32 / slow |
| Socket of hand tools, voltage/current (V/A) | 230/10 | 230/10 |
SC 20 M/T/P Safety Equipment
| Safety equipment | SC20 M/T/P |
|---|---|
| Mechanical safety brake (UC- 6) | Yes |
| Emergency lowering system | Yes |
| Final limit switch on the top and bottom end of the mast | Yes |
| Functional limit switches on the top and bottom end of the mast | Yes |
| Emergency stop buttons at the base level, in the platform | Yes |
| Overload detection device | Yes |
| Residual current device | Yes |
| Landing gate closed, limit switch | Yes |
| Landing gate locking device in closed position, limit switch | Yes |
| Platform gate/ramp closed limit switches | Yes |
| Platform gate locking device in closed position, limit switch | Yes |
| Service key switch on the platform | Yes |
| Roof hatch closed limit switch | Yes |
| Buffers at the base level under the platform | Yes |
| Brakes – spring-loaded disc brake | Yes |
| Brake torque (Nm ) |
80
2X40
|
SC20 Applications
The SC20 Transport Platform is designed for construction and industrial environments requiring dependable material and personnel hoists, including:
- Commercial and residential construction
- Renovation and refurbishment
- Industrial maintenance
- Infrastructure and civil engineering projects
