| Capacity | SC8M Single Mast | SC8T Single Mast | SC8P Single Mast |
|---|---|---|---|
| Usage | Material Hoist | Transport Platform | Personnel Hoist |
| Payload depending on configuration | 850 kg | 7 persons / 850 kg | 5 persons / 500 kg |
| Speed | 12, 24 m/min | 12, 24 m/min | 12, 24 or 36 m/min |
| Max. lifting height, with anchored mast | 100 m (higher mast by request) | ||
| Lifting motor | 3/6.1 kW | ||
| Max. distance between anchors | 6 m | ||
| Max. free mast after topmost anchoring | 2 m | ||
| Platform size | 1380 x 1700 mm | 1625 x 1434 mm | 1854 x 1354 mm |
| Mast section, hot-dip galvanised | 1.5 m / 43 kg | ||
|
Maximum wind speed
|
|
||
| Operation temperature | -25..+40 C˚ | ||
| Noise level | < 78 dBA | ||
SC8 M/T/P

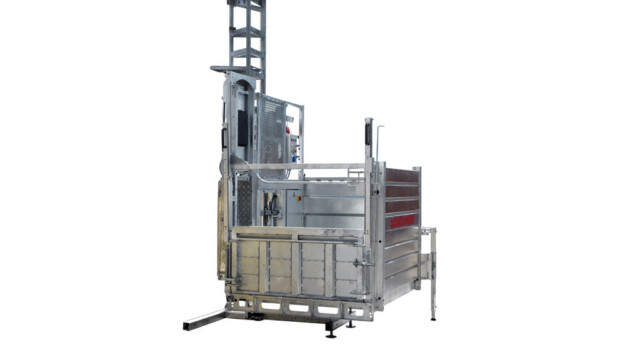

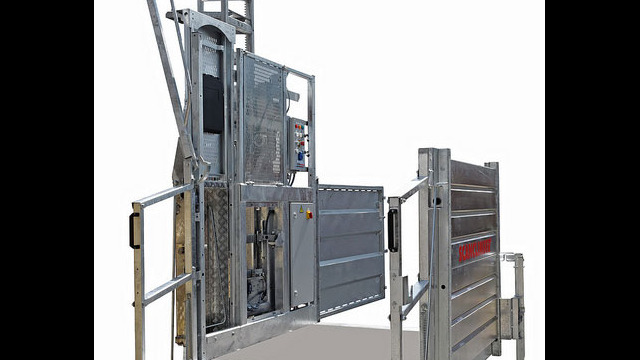

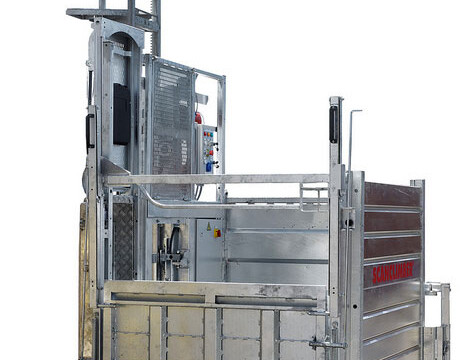

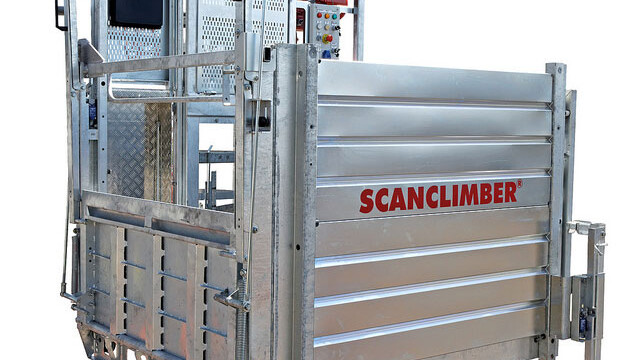

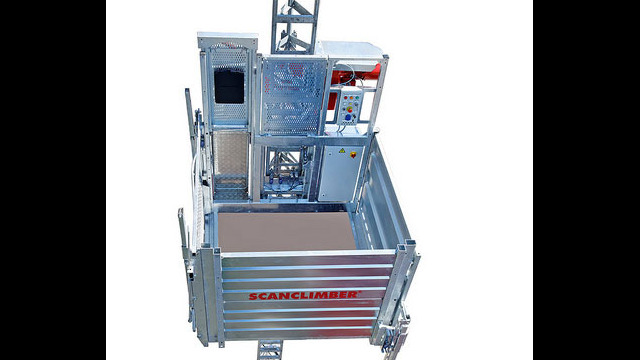

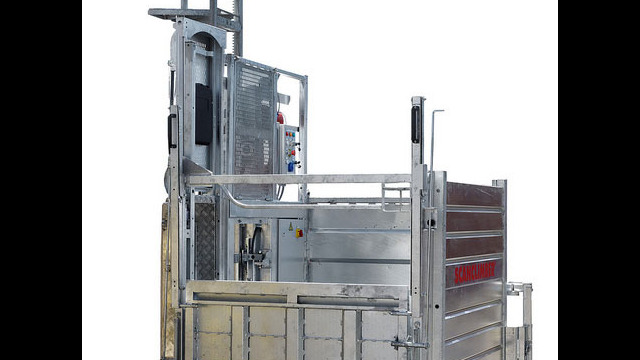

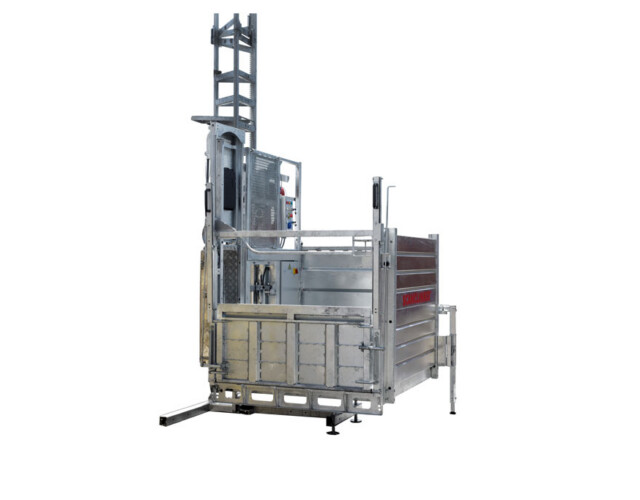

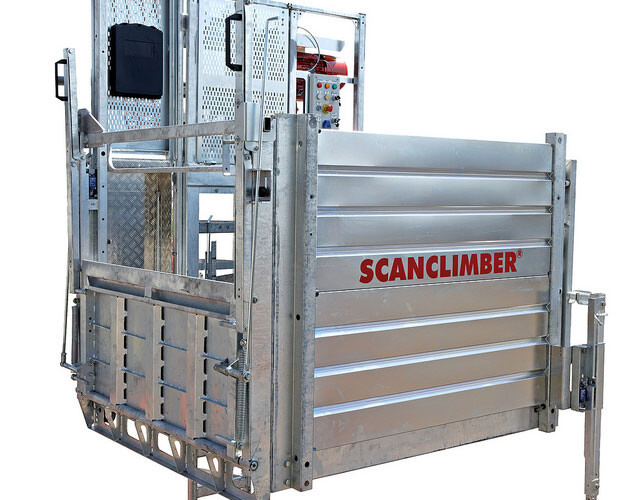

The SC8 Transport Platform is a highly efficient single mast personnel and material hoist, designed to streamline the vertical transportation of workers, materials, and equipment at construction sites.
It features a compact platform measuring 1.4 x 1.7 meters and can safely carry up to 5 persons or 500 kg in one trip. This capability significantly reduces the time and effort required compared to traditional scaffolding or other lifting methods.
The SC8 Transport Platform offers an effective solution for improving site safety and operational efficiency, making it an ideal choice for modern construction environments where speed, safety, and versatility are paramount.
Product images are provided to enhance understanding and may differ from actual product appearances; please contact our team or refer to the instruction manuals for detailed information.
Key Features
Versatile Use
Capable of transporting both personnel and materials, eliminating the need for separate hoists.
Enhanced Safety
Provides a safer alternative to climbing scaffolding, particularly when accessing higher floors.
Easy Installation and Dismantling
Quick to set up and take down without the need for a separate foundation.

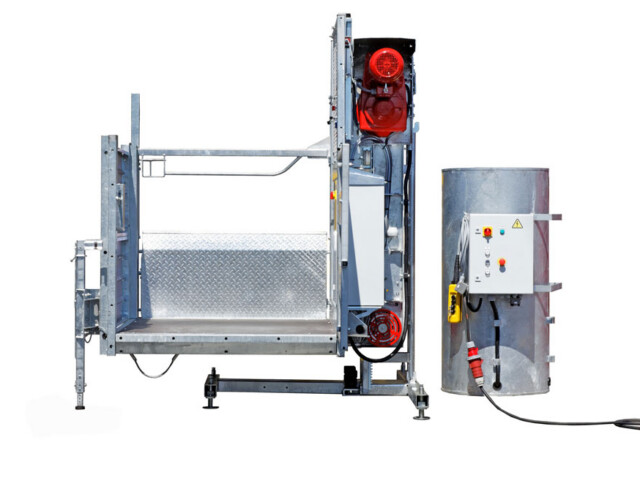

Lightweight yet Sturdy Frame
The frame is designed to be both light and robust, replacing the ground station of conventional hoists and making the SC8 easier to move and install around the site.tions
Technical Information
SC 8P Capacity

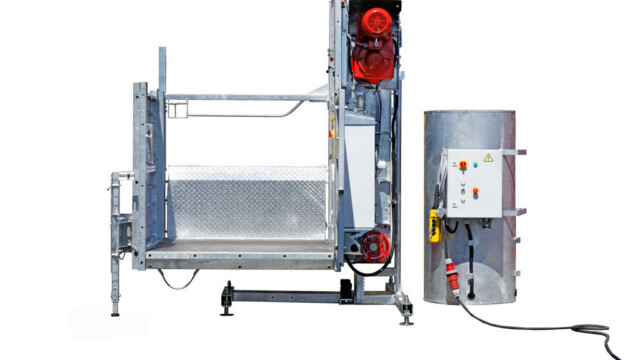

SC 8P Safety Equipment
| Safety equipment | SC8 M/T/P |
|---|---|
| Mechanical safety brake (UC- 6) | Yes |
| Emergency lowering system | Yes |
| Final limit switch on the top and bottom end of the mast | Yes |
| Functional limit switches on the top and bottom end of the mast | Yes |
| Emergency stop buttons at the base level, in the platform | Yes |
| Overload detection device | Yes |
| Residual current device | Yes |
| Landing gate closed, limit switch | Yes |
| Landing gate locking device in closed position, limit switch | Yes |
| Platform gate/ramp closed limit switches | Yes |
| Platform gate locking device in closed position, limit switch | Yes |
| Service key switch on the platform | Yes |
| Roof hatch closed limit switch | Yes |
| Buffers at the base level under the platform | Yes |
| Brakes – spring-loaded disc brake | Yes |
| Brake torque (Nm) |
80
2X40
|
SC 8P Electrical Equipment
| Electrical data / cage | SC8 M/T/P |
|---|---|
| Power – lifting motors 2 speeds |
3 /6,1 kw 0,2/0,4 m/s |
| Supply voltage/frequency | 400/50 V/Hz |
| Control voltage/frequency | 48/50 V/Hz |
| Max. starting current | 78 A |
| Power consumption | 13 kw |
| Size and type of the main fuse | 16 A 32 A slow 3 phase |
| Socket of hand tools, voltage/current | 230/10 V/A |
