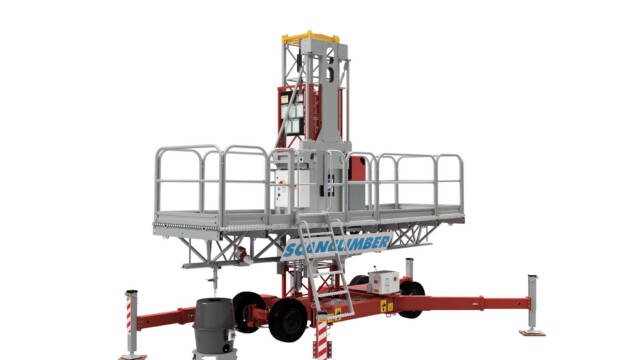

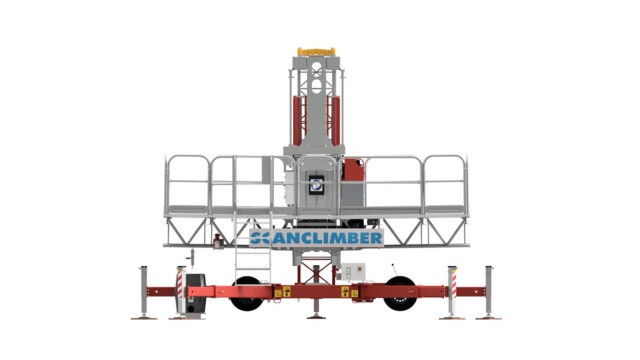

Centum SC10000

The Centum SC10000 embodies the pinnacle of mast climbing work platform technology, setting a new standard for heavy-duty construction and facade work. With the strongest drive unit across the family of MCWPs, this powerhouse is designed to lift heavy loads to demanding heights with ease and precision, making it the ultimate choice for projects that push the boundaries of scale and complexity.

Product images are provided to enhance understanding and may differ from actual product appearances; please contact our team or refer to the instruction manuals for detailed information.

Key Features

Lifting Speed

8 m/min

Loading Capacity

Up to 6000 kg with single unit configurations

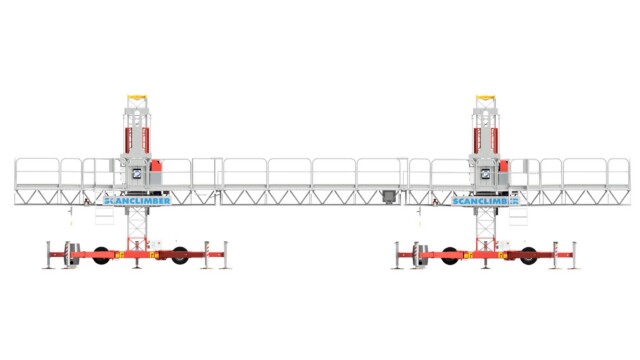

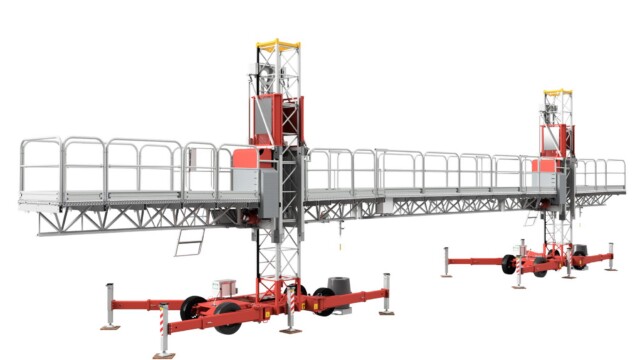

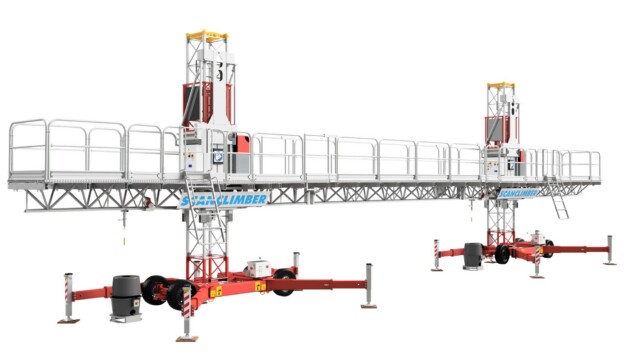

Up to 10 000 kg with a twin unit configurations

Installation Height

Up to 150 meters and higher

Platform Length

Up to 20.1 meters with single unit configurations
Up to 48.6 meters with a twin unit configurations

Max. Free Standing Height

Up to 19 meters

Customization Options

Technical Information

SC10000 Capacity

Capacity	SC10000 Single	SC10000 Twin
Max. platform length	20.1 m	48.6 m
Max. lifting capacity / platform length	6000 kg / 4.1 m	10200 kg / 15.8 m
	5600 kg / 7.3 m	10400 kg / 19 m
	5300 kg / 10.5 m	8800 kg / 24.6 m
	4000 kg / 13.7 m	6600 kg / 30.2 m
	3100 kg / 16.9 m	4300 kg / 40.6 m
	1800 kg / 20.1 m	1500 kg / 48.6 m
Maximum freestanding height with extended outriggers on both sides with extended outriggers on one side *Depending on the platform length	9 – 19 m* 9–15 m*	9 – 18 m* 9–15 m*
Max. height with top anchor	25 m	25 m
Max. height with mast anchored	150 m (higher mast by request)	150 m (higher mast by request)
Max. anchor spacing	18 m	18 m
Vertical travel speed	8 m / min	8 m / min
Chassis drive unit speed	13 m / min
Platform height at the lowest position	1.55 m	1.55 m
Max. allowed windspeed anchored	15.5 m/s	15.5 m/s

SC10000 Weights and dimensions

Weights and Dimensions	SC10000 Single	SC10000 Twin
Lowest transport height	2.4 m	2.4 m
Lowest platform level	1.55 m	1.55 m
Platform section length width weight	1.61 m 1.6 m 158 kg	1.61 m 1.6 m 158 kg
Platform extensions	0 – 1.8 m 0 – 2.5 m 2.6 – 6.0 m	0 – 1.8 m 0 – 2.5 m 2.6 – 6.0 m
Mast section length width height weight	0.7 m 0.7 m 1.25 m 82 kg	0.7 m 0.7 m 1.25 m 82 kg
Lifting frame (fully equipped) length width height weight	4.1 m 1.6 m 2.2 m 2350 kg	4.1 m 1.6 m 2.2 m 2 x 2350 kg
Chassis with outriggers length width weight	5.1 m 1.93 m 1900 kg	5.1 m 1.93 m 2 x 1900 kg

SC10000 Electrical Installation

Electrical data	SC10000 Single	SC10000 Twin
Lifting motors	2 X 7,5 kW	4 X 7,5 kW
Supply voltage	2×400 V / 50 Hz	4×400 V / 50 Hz
Power supply fuses	3 x 32 A	3 x 32 A + 3 x 32 A
Needed Power supply	60 kVA	60 kVA
Max Starting Current	165 A	165 A
Control Voltage	48 VAC	48 VAC
Socket for hand tools	2 x 230 V / 16 A	4 x 230 V / 16 A
Drive motor	400 V / 1.1 kW	2 x 400 V / 1.1 kW

SC10000 Safety Equipment

Safety equipment	SC10000 Single	SC10000 Twin
Mechanical safety brake	Yes	Yes
Manual lowering system	Yes	Yes
Safetyrailing (h=1.10 m) and kickboard on the platform	Yes	Yes
Functional limit switches at the top and bottom of the mast	Yes	Yes
Final limit switches on the top and bottom of the mast	Yes	Yes
Spring loaded disk brake torque 100 Nm	Yes	Yes
Inductive mast detector	Yes	Yes
Residual current device	Yes	Yes
Automatic platform level control system on twin mast version		Yes
