Monster SC8000

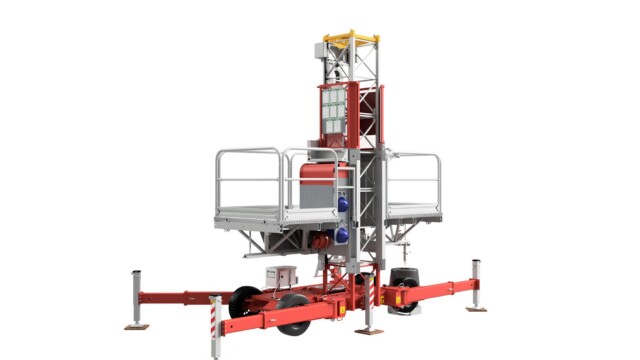

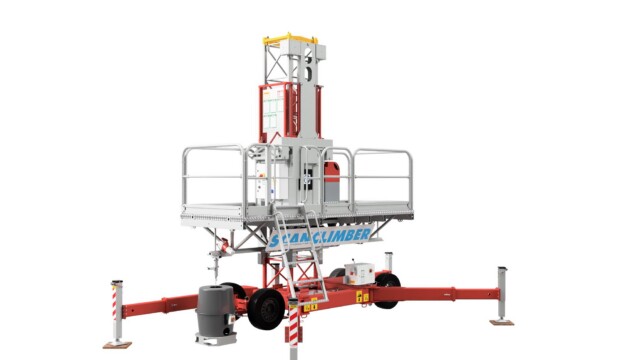

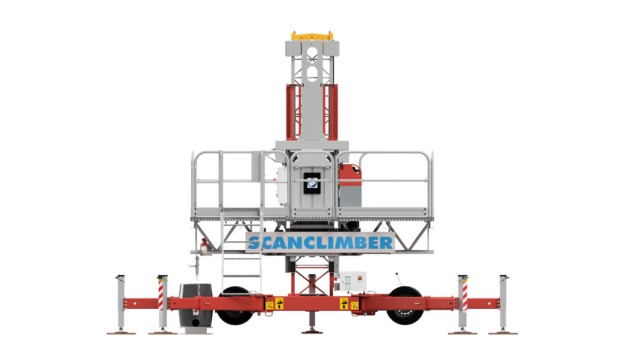

The Monster SC8000 is a powerful mix of a lifting machine and a working platform, built to handle tough jobs on big buildings. It’s perfect for projects that need to lift a lot of weight and also provide a big space for workers and materials. Whether you’re building something new or fixing up something old, the SC8000 makes the work faster and safer, no matter how big the job is.

Product images are provided to enhance understanding and may differ from actual product appearances; please contact our team or refer to the instruction manuals for detailed information.

Key Features

Lifting Speed

7.2 m/min

Loading Capacity

Up to 4500 kg with single unit configurations

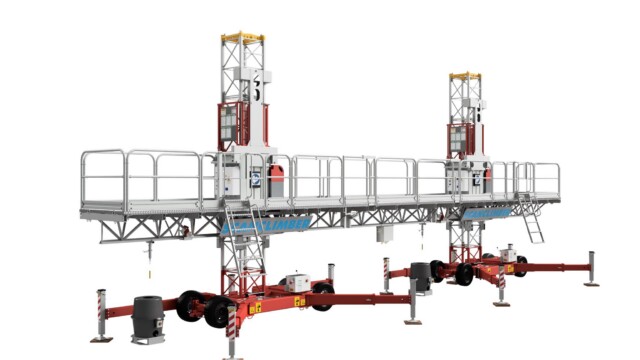

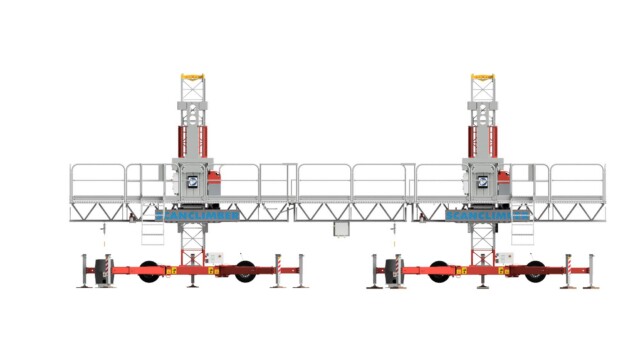

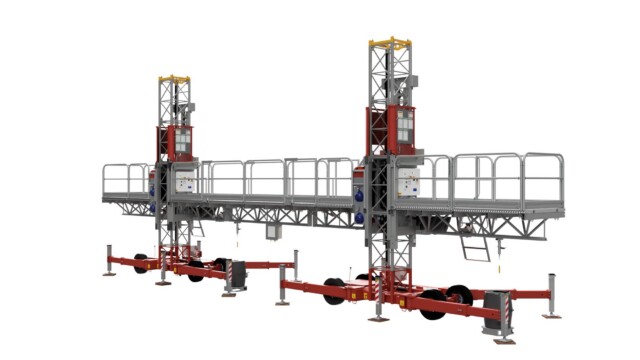

Up to 8000 kg with a twin unit configurations

Installation Height

Up to 150 meters and higher

Platform Length

Up to 16.9 meters with single unit configurations

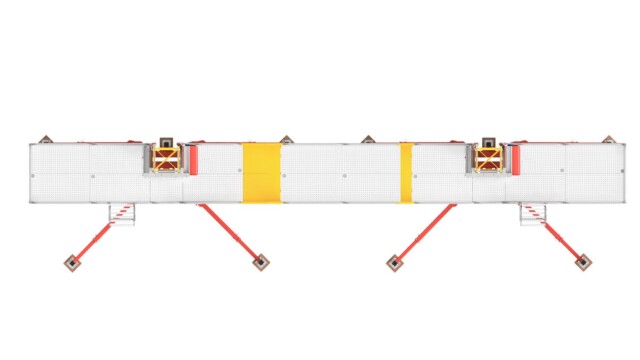

Up to 46.2 meters with a twin unit configurations

Max. Free Standing Height

Up to 19 meters

Customization Options

Technical Information

SC 8000 Capacity

Capacity	SC8000 Single	SC8000 Twin
Max. platform length	16.9 m	46.2 m
Max. lifting capacity / platform length	4500 kg / 4.1 m	8000 kg / 14.2 m
	4100 kg / 7.3 m	7500 kg / 23.8 m
	3700 kg / 10.5 m	6500 kg / 27.0 m
	3250 kg / 13.7 m	4100 kg / 36.6 m
	2800 kg / 16.9 m	1000 kg / 46.2 m
Maximum freestanding height with extended outriggers on both sides with extended outriggers on one side *Depending on the platform length	9 – 19 m* 9–15 m*	9 – 18 m* 9–15 m*
Max. mast height, anchored mast	150 m	150 m
Max. mast height, freestanding mast	19 m	19 m
Max. anchor spacing	18 m	18 m
Vertical travel speed	7.2 m / min	7.2 m / min
Chassis drive unit speed	13 m / min
Platform height at the lowest position	1.55 m	1.55 m

SC 8000 Weights and dimensions

Weights and Dimensions	SC8000 Single	SC8000 Twin
Lowest transport height	2.4 m	2.4 m
Lowest platform level	1.55 m	1.55 m
Platform section length width weight	1.61 m 1.6 m 158 kg	1.61 m 1.6 m 158 kg
Platform extensions	0 – 1.8 m 0 – 2.5 m 2.6 – 6.0 m	0 – 1.8 m 0 – 2.5 m 2.6 – 6.0 m
Mast section length width height weight	0.7 m 0.7 m 1.25 m 82 kg	0.7 m 0.7 m 1.25 m 82 kg
Lifting frame (fully equipped) length width height weight	4.1 m 1.6 m 2.2 m 1950 kg	4.1 m 1.6 m 2.2 m 2 x 1950 kg
Chassis with outriggers length width weight	5.1 m 1.93 m 1900 kg	5.1 m 1.93 m 2 x 1900 kg

SC 8000 Electrical Installation

Electrical data	SC8000 Single	SC8000 Twin
Lifting motors	2 X 4,4 kW or 6,1 kW	4 X 4,4 kW or 6,1 kW
Supply voltage	2×400 V / 50 Hz	4×400 V / 50 Hz
Power supply fuses	3 X 32 A	3 X 32 A + 3 X 32 A
Needed power supply	48 kVA	48 kVA
Max starting current	100 A	? A
Control voltage	48 VAC	48 VAC
Socket for hand tools	2 x 230 V / 16 A	4 x 230 V / 16 A

SC 8000 Safety Equipment

Safety equipment	SC8000 Single	SC8000 Twin
Mechanical safety brake	Yes	Yes
Manual lowering system	Yes	Yes
Final limit switch on the top and bottom end of the mast	Yes	Yes
Functional limit switches on the top and bottom end of the mast	Yes	Yes
Safety railing (h=1,10 m) and kick board on the platform	Yes	Yes
Spring loaded disk brake, torque 100 Nm	Yes	Yes
Inductive mast detector	Yes	Yes
Residual current device	Yes	Yes
Automatic platform level control system on twin mast version		Yes
