All Reach Extension (ARE)

Key Features

Adjustment of position, reach, and angle in mid-air
Extends outside from the platform edge up to 5.5 meters
Capable of slewing +/- 45 degrees, offering versatile access options.
Allows work on structures with pillars, masts, cavities, cone shapes, and offsets.
Durable design suited for use in demanding conditions

The ARE is a must-have for anyone using Scanclimber MCWPs, offering new levels of productivity and versatility in accessing challenging work areas.

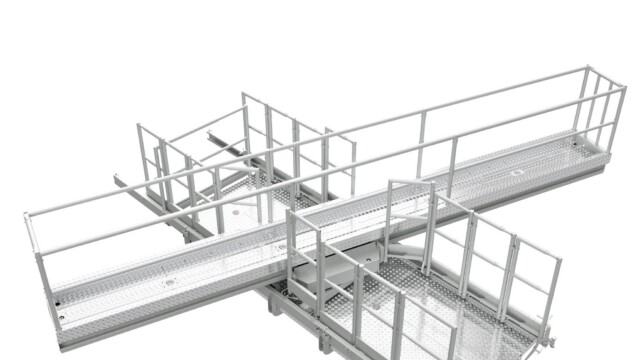

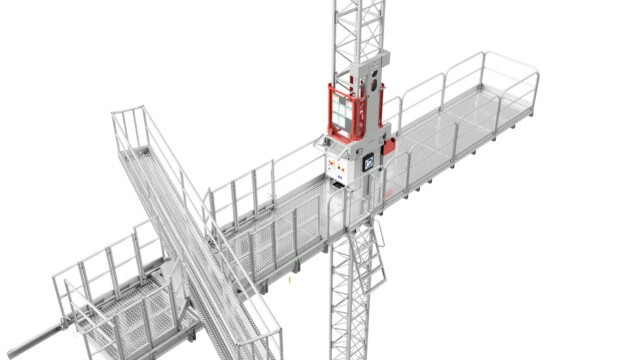

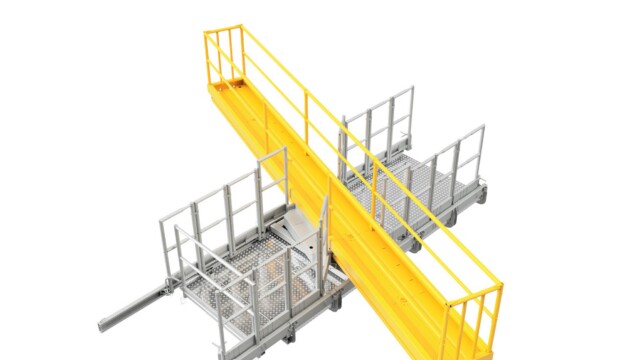

The All-Reach Extension (ARE) is a dynamic extension for Mast Climbing Work Platforms (MCWP), designed to provide access to the most complex and uneven facades.

This innovative tool enhances the versatility of standard MCWPs by adding a “freely” moving diagonal platform that can extend over 5 meters from the main platform, slide along it, and rotate up to 90 degrees.

Compatible with the SC5000, SC6000, SC8000 and SC10000 models, the ARE transforms MCWPs into high-reach access machines ideal for working on intricate surfaces. It supports a payload of 240 kg, accommodating two persons with tools, and measures 700 mm in width and 7 meters in length.

All MCWP's Extensions

Telescopic Extensions

Telescopic Extensions enable the platform to access complex structures and hard-to-reach areas, streamlining project execution and improving efficiency.

Side Platform Adapter

Side platform adapter enables standard platform sections to be rotated 90°, allowing them to be configured perpendicular to the main platform.

Adjusting Console

The Adjusting Console for Telescopic Pipes is a practical tool designed to enhance the versatility of Mast Climbing Work Platforms.

Bridge Extension

The Bridge Extension/Extension Bridge is an optional accessory designed for Mast Climbing Work Platforms (MCWPs) to facilitate work on the platform gap—the area between the mast and the wall

Bricklaying Extension

Scanclimber's Edge Extension is a unique sliding extension designed to increase the length of a platform, making it adjustable to match the size of the object being worked on.

Hinged Extension

Scanclimber's Hinged Extension is a unique add-on that combines the best features of both sliding extensions and Sliding Deck Extensions (SDE).

Edge Extension

Scanclimber's Edge Extension is a unique sliding extension designed to increase the length of a platform up to 2 meters (1 meter per side), making it adjustable to match the size of the object being worked on.

All Reach Extension

The All-Reach Extension (ARE) is a dynamic extension for Mast Climbing Work Platforms (MCWP), designed to provide access to the most complex and uneven facades.

Counter Balanced Extension (CBE)

The Scanclimber Counter Balanced Extension (CBE) is a customizable add-on designed for flexibility, it allows platforms to reach out dynamically, making facade work on buildings with varying distances much easier.

Sliding Deck Extension

The Scanclimber SDE enhances MCWPs by adding horizontal movement for easier work on complex facades. It allows decks to independently slide 1.6 meters outward, with an optional second level (Double Decker SDE) for added reach.

Snake Platform

The Scanclimber Snake Platform is a flexible and innovative system designed to enhance the capabilities of Mast Climbing Work Platforms. This hinged platform system includes sections of 1.5 m and 0.6 m lengths that can be adjusted steplessly up to ±45 degrees at any heigh.
