All Reach Extension (ARE)
Key Features
- Adjustment of position, reach, and angle in mid-air
- Extends outside from the platform edge up to 5.5 meters
- Capable of slewing +/- 45 degrees, offering versatile access options.
- Allows work on structures with pillars, masts, cavities, cone shapes, and offsets.
- Durable design suited for use in demanding conditions
The ARE is a must-have for anyone using Scanclimber MCWPs, offering new levels of productivity and versatility in accessing challenging work areas.

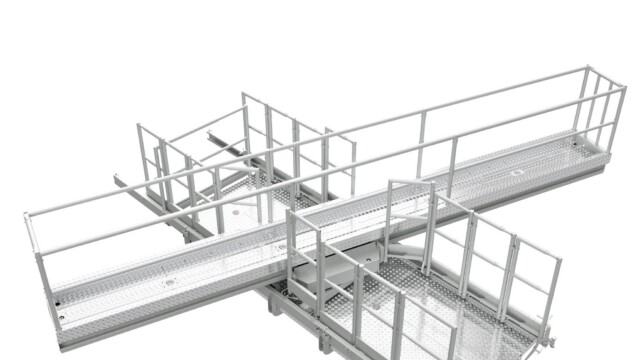

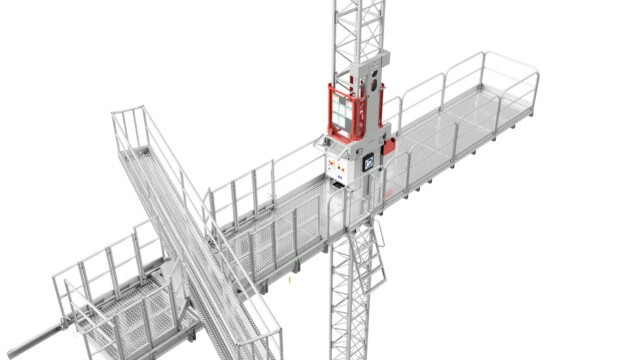

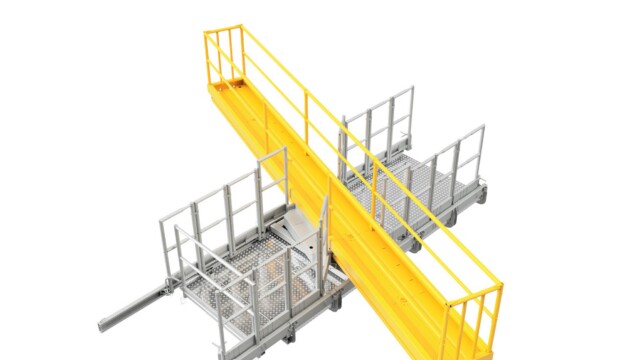

The All-Reach Extension (ARE) is a dynamic extension for Mast Climbing Work Platforms (MCWP), designed to provide access to the most complex and uneven facades.
This innovative tool enhances the versatility of standard MCWPs by adding a “freely” moving diagonal platform that can extend over 5 meters from the main platform, slide along it, and rotate up to 90 degrees.
Compatible with the SC5000, SC6000, SC8000 and SC10000 models, the ARE transforms MCWPs into high-reach access machines ideal for working on intricate surfaces. It supports a payload of 240 kg, accommodating two persons with tools, and measures 700 mm in width and 7 meters in length.
