Bridge Extension
Key Features
The Extension Bridge can support a maximum load of 240 kg
Equipped with guard railings, the bridge ensures secure and safe movement. Additionally, it includes a safety mechanism featuring a limit switch that prevents the MCWP from moving if the bridge is not properly lifted, enhancing operational safety.
The single deck version can be converted into a double deck with additional components, offering flexibility based on project requirements.
Allows bricklayers to cross from one side of the extended platform to the other, streamlining workflow and reducing time spent manoeuvring around the workspace.

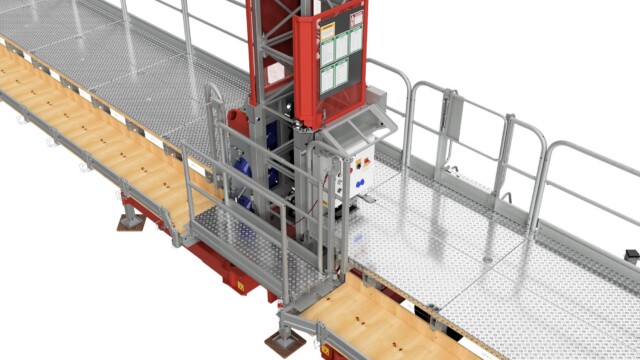

Both bridge versions can be used in conjunction with regular extensions or bricklayer extensions, further enhancing their utility.

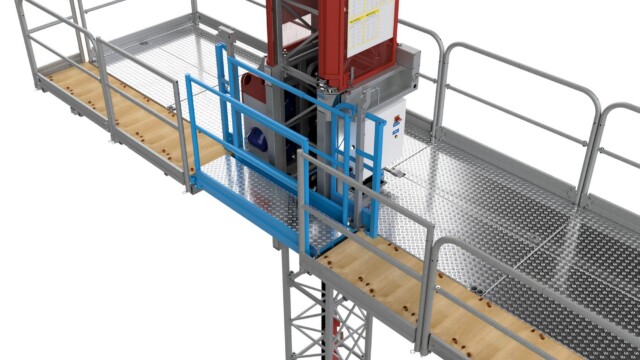

The Bridge Extension/Extension Bridge is an optional accessory designed for Mast Climbing Work Platforms (MCWPs) to facilitate work on the platform gap—the area between the mast and the wall. This bridge enhances the functionality of the MCWP by allowing workers to safely access and operate over this gap.

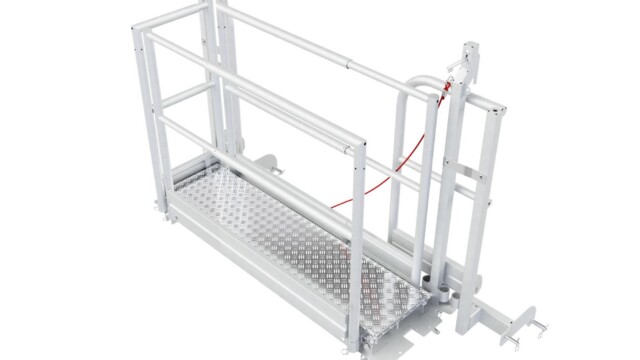

Scanclimber offers the Extension Bridge in two versions: a single deck and a double deck. The single deck version can be converted into a double deck with additional components, offering flexibility based on project requirements.
The double deck version allows bricklayers to cross from one side of the extended platform to the other without needing to return to the main platform, streamlining workflow and reducing time spent manoeuvring around the workspace.
The Extension Bridge is a valuable tool for increasing the efficiency and safety of work performed on MCWPs, particularly in complex construction environments where access between the platform and the wall is crucial.
