Edge Extension

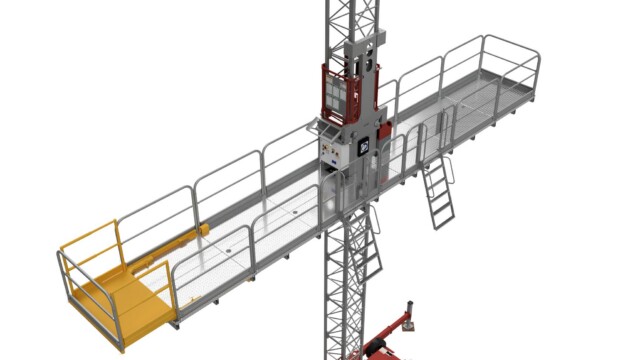

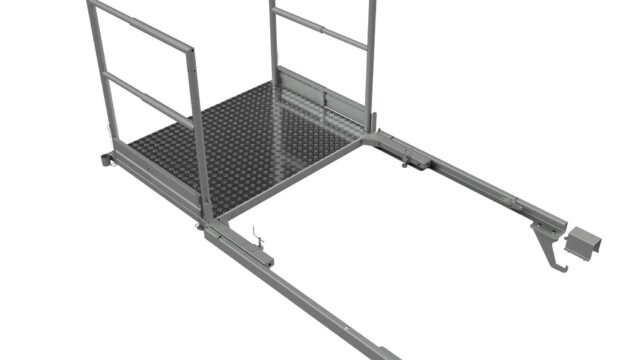

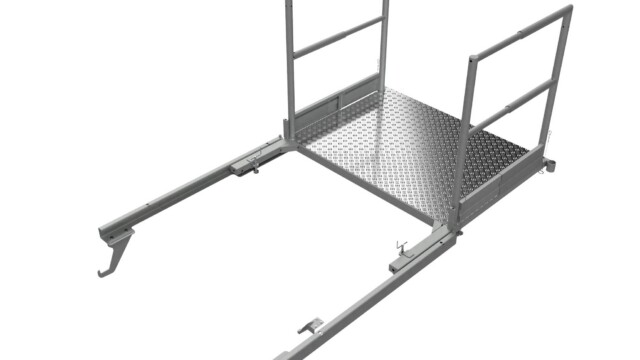

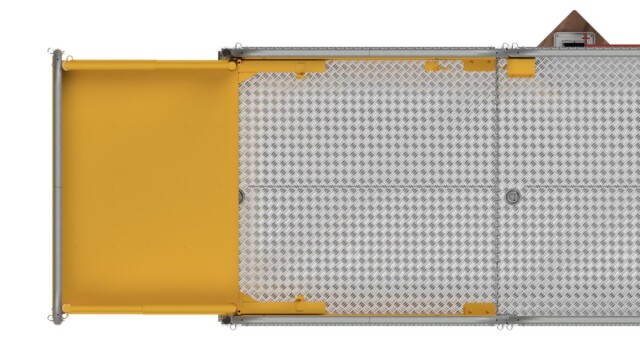

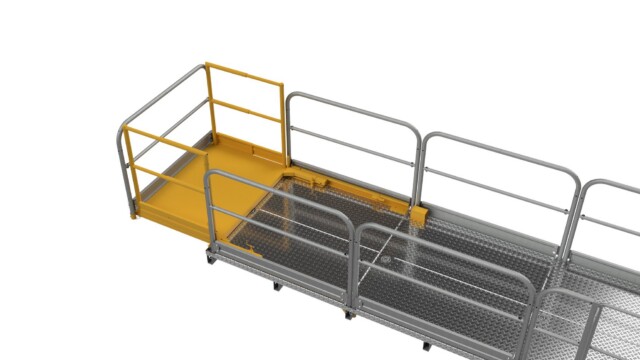

Scanclimber’s Edge Extension is a unique sliding extension designed to increase the length of a platform, making it adjustable to match the size of the object being worked on.

This extension allows for a platform length change of up to 2 meters (1 meter per side) and can be securely attached to both the base of a Scanclimber MCWP platform and side platforms measuring 0.8m or 1.6m.

It supports a maximum load of 240 kg, sufficient for two persons with tools, and is not intended for carrying additional loads.

The Edge Extension is compatible with the SC5000, SC6000, SC8000 and SC10000 MCWPs. Users should consider the extension’s own weight and capacity in relation to the total payload capacity of the MCWP to ensure safe operation.

Key Features

Adjustable Length

Allows for the platform length to be extended or shortened by up to 2 meters (1 meter per side), adapting to the size of the work object.

Compatibility

Designed to fit the base platform and side platforms (0.8m or 1.6m) & is compatible with the SC5000, SC6000, SC8000 and SC10000.

Load Capacity

Supports a maximum load of 240 kg.

Special Sliding Design

A sliding extension type that enhances the platform's reach and utility without compromising stability.

Non-Lifting Purpose

Intended for expanding workspace rather than lifting additional loads, focusing on safety and efficiency.
